Manufacturer: Adesso
MPN: AUH-4060

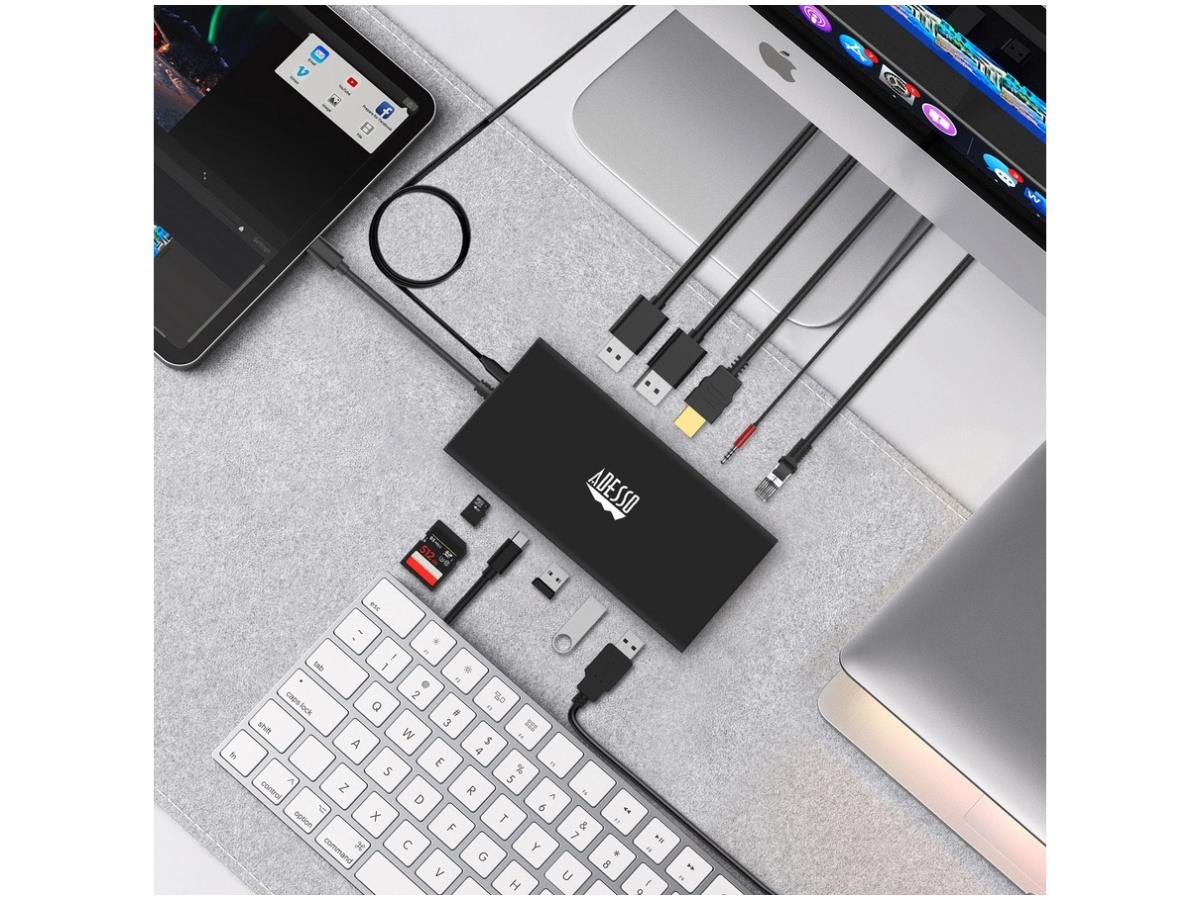

The Adesso AUH-4060 9-in-1 USB-C Multiport Docking Station expands the connectivity of laptops and USB-C devices by providing dual DisplayPort outputs, an HDMI port, multiple USB-A and USB-C ports, SD and TF card reader slots, an RJ45 Ethernet port, and USB-C power delivery. This all-in-one hub eliminates the need for multiple adapters and simplifies device expansion for home, office, and mobile work environments.
It supports dual DisplayPort 8K/30Hz or 4K/30Hz, HDMI 4K/60Hz or 4K/30Hz output, high-speed USB 3.2 data transfer, SD/TF card access, and wired network connectivity. Its plug-and-play design requires no software installation and is compatible with USB-C or Thunderbolt™ 3-enabled laptops and devices.
Key Features & Benefits
- 9-in-1 USB-C multiport expansion for full device connectivity
- Dual DisplayPort outputs (8K/30Hz, 4K/30Hz) and 1 HDMI (4K/60Hz, 4K/30Hz)
- Four USB-A 3.2 superspeed ports for high-speed data transfer
- USB-C 3.2 port with Power Delivery up to 100W
- SD and TF card reader slots for versatile storage access
- RJ45 Ethernet port for wired network connections
- Plug-and-play operation with no software installation required
- Compact and durable design for desktop or portable use
Technical Specifications
- Device Type: USB-C Multiport Docking Station
- Number of Ports: 9
- Video Output: Dual DisplayPort (8K/30Hz, 4K/30Hz), HDMI (4K/60Hz, 4K/30Hz)
- USB Data Transfer: USB-A/USB-C 3.2 (5 Gbps)
- Power Delivery Support: Up to 100W
- SD/TF Card Transfer Rate: 480 Mbps
- Ethernet: RJ45 10/100/1000 Mbps
- Weight: 2.10 lbs
Connectivity
- 1 × USB-C (Host Connection)
- 1 × USB-C 3.2 (5 Gbps) with Power Delivery up to 100W
- 3 × USB-A 3.2 (5 Gbps)
- 2 × DisplayPort
- 1 × HDMI
- 1 × SD Card Slot
- 1 × TF (Micro SD) Card Slot
- 1 × RJ45 Ethernet
Performance
- Supports dual 8K or 4K DisplayPort outputs and HDMI 4K displays
- High-speed USB 3.2 data transfer for peripherals
- SD/TF card data access up to 480 Mbps
- Reliable wired network connectivity
- Efficient operation with USB-C/Thunderbolt™ 3 devices
Physical Characteristics
- Compact and robust design
- Weight: 2.10 lbs
- TAA Compliant: Yes
- COO: Taiwan
- SKU: 6695312
